HTPC ODM/OEM VFD
Standard HTPC Remote Control/Display Solution
HTPC ODM/OEM VFD model has been used to HTPC from many ODM/OEM customers.
VFD could be shown as green or blue according to the front filter window. The display character by VFD is ASCII characters and some special characters to show graphical EQ.

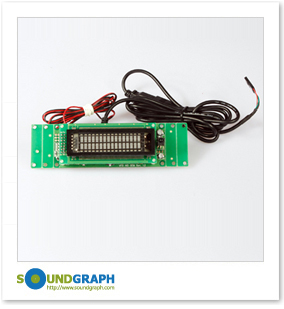

The receiver/display board is well designed to fit to the most of HPTC front cover size and you can select knob boards and button board according to the type. In order to check the different types, please click the following link.
<Media Information>
<Graphical EQ>
<System Information>
<News>
<World City Time and Weather>
<Email Check>
VFD is the shortened word of Vacuum Fluorescent Display and has brilliant display and high readability.
HTPC ODM/OEM VFD has the VFD display which can display 16*2 characters and it shows the following information using VFD display.
1. Media Information
2. Graphical EQ
3. System Information
4. News
5. World City Time and Weather
6. Email Check

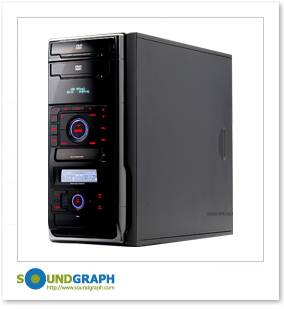

ODM/OEM Customization
Using the knob, button and LED positioning, we can make the image for front cover.
We have many experiences of making various ODM/OEM models with many PC makers and PC case manufacturers. We can make the custom type product with fully understanding of the ODM/OEM customer’s requirements.
Also we are ready to propose the new prototypes with a creative ideas.
If you need a PC case and system with a totally new idea, please consult with SoundGraph.
Knob Button for Volume Control and Navigation
HTPC ODM/OEM VFD model can select two knobs as maximum. In this case, one knob can be used to control volume and the other knob can be used for navigation.
By the rotation of right side volume knob, you can control the volume easily. Press knob button to mute and press again to unmute. We design the volume level, smoothly increased and decreased, while it is being mute and unmute.
By the rotation of left navigation knob, you can easily explore the media files. If you rotate it clockwise, it will goes down on the list. If you rotate it counter-clockwise, it will move up on the list. If you click the knob button shortly, the list will be selected and if you click it long, it will be back to the previous depth. Using navigation knob only, you can control the iMEDIAN HD and other media players perfectly.
Buttons for Media Play Control
HTPC ODM/OEM LCD can have the buttons for media control up to 22 buttons. The buttons for media control are as like below.
1. Play
2. Pause
3. Play/Pause
4. Previous Media
5. Next Media
6. Fast Forward
7. Rewind
8. Stop
9. Increase Volume
10. Decrease Volume
11. Mute
12. Up Arrow
13. Down Arrow
14. Right Arrow
15. Left Arrow
16. Enter
17. Quick Launch
18. App. Exit
19. Back
20. Window Key
21. Menu
22. Custom Key
The Selectable Remote Control Option
You can select the remote control of HTPC ODM/OEM Inside model between the iMON Pad remote control which has various features and iMON Mini remote control which has essential features.
Transform to the Real HTPC, iMON Pad Remote Control
In order to use PC as a perfect HTPC, iMON Pad remote control can control PC in a long distance. It can control the mouse pointer as well by Mouse/Keyboard button.
Less is More! iMON Mini Remote Control
iMON Mini remote control is convenient with only most essential buttons for media control. It can be used simply with the iMEDIAN HD which can be controlled by 4 way buttons only.
The Essential Accessory for Remote Control Power on, 24/3 Pin Standby Power Extension Cable.
The 24/3 Pin Standby Power Extension Cable included in HTPC ODM/OEM VFD is the essential accessory for power on by remote control. If you use this power extension cable, you can supply the standby power to the iMON receiver and it turns on PC by the remote control signal.
One Remote Control for All, iMON Manger is the Core!!!
iMON Manager which is included in HTPC ODM/OEM VFD is the best solution among the applications developed for HTPC and multimedia PC.
You can control most of media applications by one remote control and shows media playback information, graphical EQ, News and Weather by various displays.
Also iMON Manager provides various settings for media playback by PC using Virtual Keyboard, Monitor Resolution Changer and Timer.
The Ultimate Media Center Solution, iMEDIAN HD
iMEDIAN HD which is included in HTPC ODM/OEM VFD is the most advanced media center solution for multimedia PC and HTPC.
You can enjoy ‘Music’, ‘Videos’ and ‘Pictures’ by remote control and easy user interface. The most important part to use multimedia PC and HTPC using remote control is the application. iMEDIAN HD has been updated continuously for last 5 years. The new interface of iMEDIAN HD can easily search and play media files stored in the PC.
It might be easy to buy one book and read it but it is not easy to setup a library with the books you read through your whole life. iMEDIAN HD will help you to, easily search and play the various audio, video and image files you have with unlimited media database.
Oct 23, 2009
SoundGraph, Inc.
