HTPC ODM/OEM FingerVU 700M Drawing

<Type A>

<Type B (Volume)>

<Type B (Button)>

<Type C>

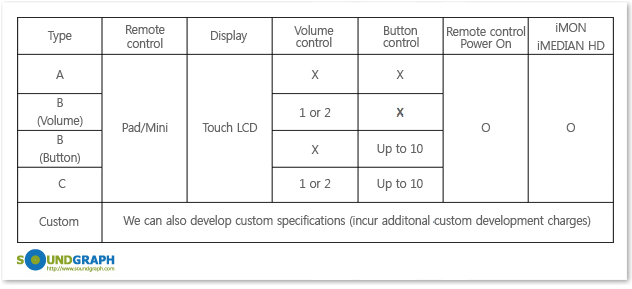

HTPC ODM/OEM FingerVU 700M Specification Comparison

HTPC ODM/OEM FingerVU 700M Board

HTPC ODM/OEM FingerVU 700M Remote Control

Technical Specifications

1. Remote Signaling
38KHz infrared signals

2. Maximum Receiving Distance
10 meters

3. Wireless Reception Angle
AFFS 120º

4. LCD Touch Screen
Samsung 7” LCD wide Touch Screen

5. Resolution
800 x 480

6. Touch Resolution
17,78 cm (7 inch)

7. Aspect Ratio
Wide(16:10)

8. Response Rate
25ms

9. Contrast
400:1

10. Backlight
LED Backlight

11. Brightness
350 cd/㎡

12. Panel Type
TMR Type TFT LCD

13. Color
16,777,216 colors

14. Power Consumption
5.5 W

15. Touch Resolution
4,096 x 4,096

16. Connector
One or two USB 20 port ( 1 port for data transmission; 1 port for bus power supply)

17. Interface
USB 2.0

18. Supported Operating Systems
Windows 7 (32/64 bit), VISTA (32/64 bit) and XP (32/64 bit)
CUP and memory: 1.5 GHz, 512MB or more ( up to 1.8 GHz, 1.0 GB for Resolution of Video Play)
2 USB 2.0 Data Port

19. Supported Languages
Korea, English, Japanese, Chinese (Traditional/ Simplified), French, German, Italian, Spanish

20. Supported Applications:
iMEDIAN HD, Windows Media Player, iTunes, Winamp, Real Player, Realone Player, QuickTime, MusicMatch Jukebox, Sonique, GOM Player, KMP, Jet Audio, Power Cinema, Win DVD, Power DVD and Windows Media Center Edition

21. Hardware Certification
CE, FCC, MIC, RoHS, WEEE

22. Driver Certification
WHQL

23. The Current Version
1.54.0617 (Jun 17, 2010)

Jun 30, 2010
SoundGraph, Inc.
