Hummin' Wired HTPC (Barebone)
Hummin' 3.03 + FingerVU 1016S + Mainboard + Removable HDD Bay
SoundGraph Hummin’ Home Theater PC System with 10.1” FingerVU Wired Monitor

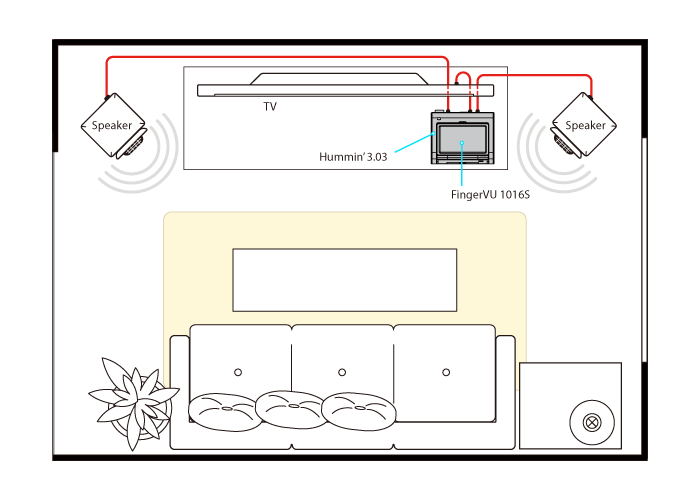

Hummin’ Home Theater PC System is a cost-effective home theater PC, excluding the wireless monitor from Hummin’ Wireless Home Theater PC System. Designed for Mini-ITX mainboard, Hummin’ 3.03 Enclosure does not occupy its space as much as any conventional home theater PCs. Its cubic shape allows ease of assembly and its excellent heat-sink performance makes you build a quiet system suitable for your living room. FingerVU 1016S Wired Monitor can be mounted on top and front of Hummin’ 3.03 Enclosure. Using the large 10.1” screen of the monitor, you can enjoy your media like music, pictures, videos and YouTube as well as searching the internet and news, without turning on TV. Hummin’ Home Theater PC System can be manipulated by using its own remote control or by touching the monitor. Having no need for additional keyboard and mouse, Hummin’ Home Theater PC System can also be used in commercial spaces such as café, bar, restaurant, hotel room and department stores, wherever a media playback is needed. As shown in the image below, TV and home theater speakers are connected to Hummin’ Home Theater PC System through their audio and video cables in living room and FingerVU 1016S Wired Monitor is mounted on the Hummin’ 3.03 Enclosure, so that the application running on TV can be manipulated or the media playing on TV can be switched to the monitor screen for the playback control of them.
 |
Easy Manipulation by Touch
With FingerVU 1016S Wired Monitor mounted on Hummin’ Home Theater PC, the application running on TV can easily be manipulated by using the virtual keyboard, mouse, or remote control embedded in FingerVU 1016S Wired Monitor, without the external keyboard and mouse.
In addition, display of the application running on TV can be switched to FingerVU 1016S Wired Touch Monitor, and vice versa, using Task Manager in Touch Frame. This feature enables easy handling of the application running on TV in a case when you bring the application to the wired touch monitor, manipulate it by touch, and send back to the screen of TV.
Convenient Transfer of Media File and Library Management
Hummin’ Wireless Home Theater PC System can be connected to various IT devices for easy transfer of media and all of the media files can be managed by making your own library using ‘Library+’ module in HD Frame. If you use the removable HDD Bay included in the Hummin’ Home Theater PC barebone kit, any large sized media file can be played in Hummin’ Wireless Home Theater PC System. Even when you have a large number of media files, each library can be created and managed for each drive for easy management. The card reader placed on Hummin’ Wireless Home Theater PC connects a memory card from various IT devices and can be used for backup for media files. Therefore, all of the media file you have can be stored in Hummin’ Wireless Home Theater PC in your living room, played on TV, and transferred to other IT devices easily.
Easy System Configuration with Recommended Specifications
SoundGraph has tested safety and compatibility issues of system components before launching Hummin’ Wireless Home Theater PC System to set the recommended specifications. Various mainboard products having integrated graphic chipset were considered among the Mini-ITX mainboards in the market, in terms of high cost performance and capability of multimedia playback. Intel and AMD platform mainboards manufactured by J&W, a company producing various Mini-ITX mainboards, are chosen for recommended specifications. Hummin’ Wireless Home Theater PC System can be configured with the J&W’s Intel/AMD platform mainboard and other components listed below. The listed specifications are recommended for smooth playing of Full HD Video and for running applications for Hummin’ Home Theater PC System such as iMON Manager, Touch Frame, and HD Frame. The home theater PC can also be configured with components having higher specification for higher performance.
| Recommended components |
Intel platform components |
AMD platform components |
| Mainboard |
[J&W] Minix H55-HD * |
[J&W] 785G-SP128M ** |
| CPU |
[Intel] Core i3-540 (3.06 Ghz) |
[AMD] Athlon2 X2 250 (3.0 Ghz) |
| Memory |
DDR3 SDRAM 2 GB (PC3 10600) |
2 * DDR2 SDRAM 1 GB (PC2- 6400) |
| Hard disk drive |
250 GB or More |
| Optical disk drive |
Blue-ray or DVD ROM |
| Power supply |
Micro ATX (400 W) |
* This board support max 87W TDP processors. For more Information, Please visit J&W Website ** This board support max 65W TDP processors. For more Information, Please visit J&W Website Drivers of mainboard and each component for Hummin’ Home Theater PC are listed below. These drivers have been tested and verified for safety and compatibility. SoundGraph will keep updating the latest drivers for the recommended components with the safety and compatibility test.
- Hummin’ Wireless Home Theater PC (Barebone) (Intel platform) Driver Download
- Hummin’ Wireless Home Theater PC (Barebone) (AMD platform) Driver Download
Recommended Hardware Configuration
Applications for Home Theater PC
January 07, 2011
SoundGraph Inc.
