How to open iMON Manager window?

1. To open iMON Manager window,
     a) Right-click iMON Indicator or iMON tray icon and select “iMON Manager”

         .

     Or

     b) Double-click iMON tray icon.

         .




How to check SW and FW version?

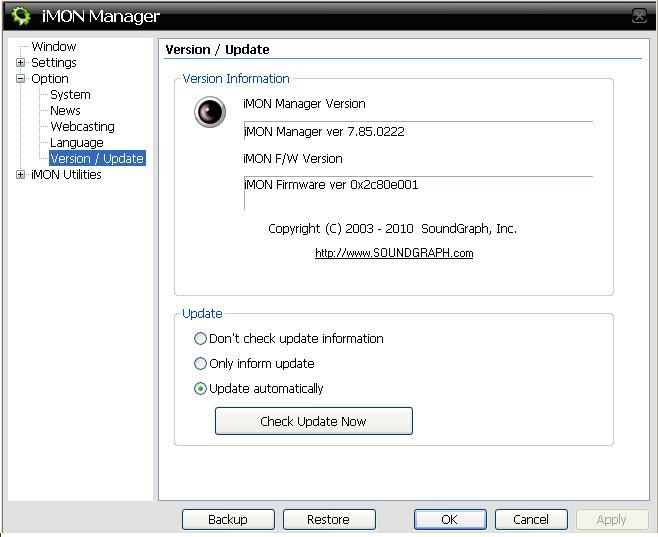

1. Open iMON Manager and select “Option” > “Version / Update”.
      You can find SW and FW version information under “Version Information”.






How to setup volume control device?

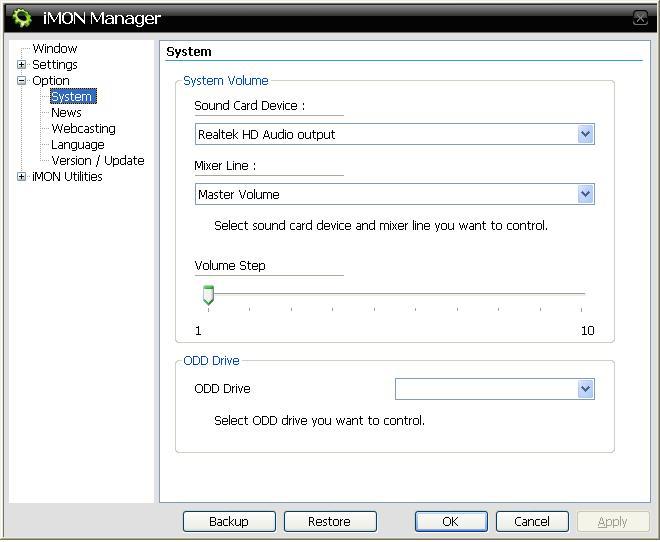

1. Open iMON Manager and select “Option” and “System”.
     a) XP:
        Select “Sound Card Device” and “Mixer Line” you want to control. (Generally, Audio Output device and Master Volume)
        If you’re using audio decoder, try to select “Wave” for “Mixer Line”.



     b) Vista and Windows 7:
       Select “Sound Card Device” with the current Audio Output device of the system.




How to add new RSS feed source?

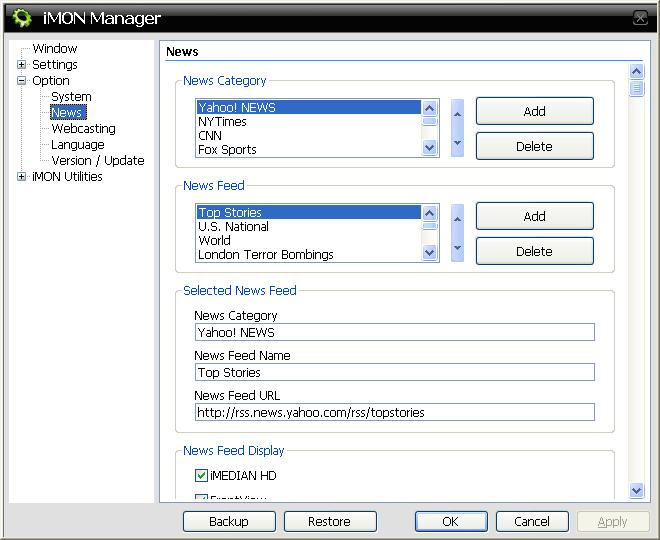

1. Open iMON Manager and select “Option” and “News”.



2. To add RSS feed
     a) To new category,
         click “Add” button in “News Category”.

     b) To existing category,
         click “Add” button in “News Feed”.

3. Enter
     “News Category”, “News Feed Name” and “News Feed URL” Feed”.

4. Select where you want to display this feed in “News Feed Display”.
     (Currently iMEDIAN HD doesn’t support News. But it will be applied in the future update.)


How to launch Virtual Keyboard?

1. To launch Virtual Keyboard window,

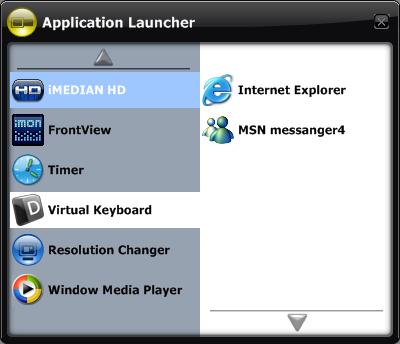

     a) Press “App. Launcher” button on the remote and select “Virtual Keyboard”.



     Or

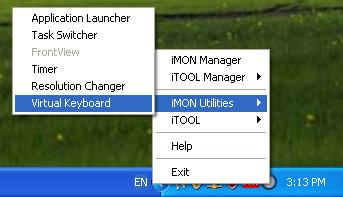

     b) Right-click iMON tray icon and select “iMON Utilities” and “Virtual Keyboard”.






How to hide IR Indicator on desktop?

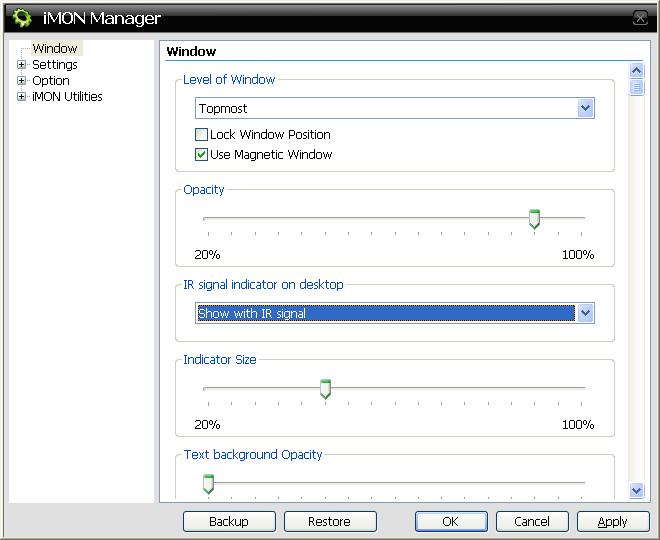

1. Open iMON Manager and select “Window”.

2. To hide IR Indicator on desktop,
     a) Select  “Don’t Show” from “IR signal indicator on desktop”.



     Or

     b) select “Show with IR signal”, to show Indicator only when you press the button on the remote.






How to change monitor resolution, color depth and frequency with the remote?

1. To change monitor resolution with remote,

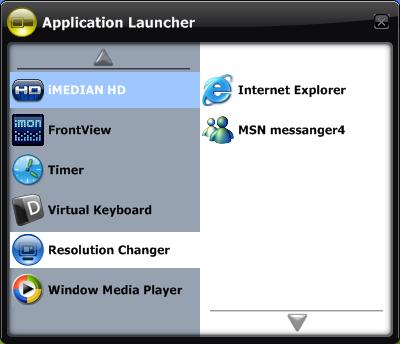

     a) Press “App. Launcher” button on the remote and select “Resolution Changer”.





      Or

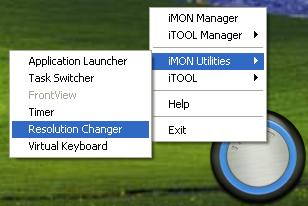

      b) right-click iMON tray icon and select “iMON Utilities” and “Resolution Changer”.

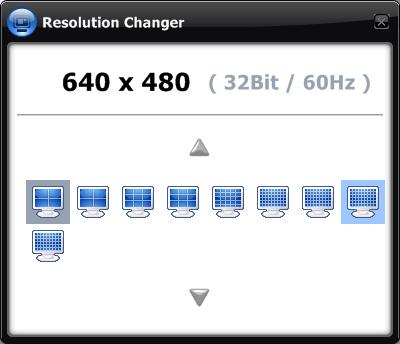

2. Move with Arrow buttons and select resolution in Resolution Changer window.



     The resolution, color depth and frequency listed in Resolution Changer window can be edited as follows
     a) Open iMON Manager and select “iMON Utilities” and “Resolution Changer”.



     b) Select resolution and change color depth and frequency to your favorite.




How to Backup and Restore iMON Settings?

1. The Location of iMON Data
     a) XP:
     "C:\Documents and Settings\Logon Name\Application Data\SOUNDGRAPH\iMON"

     b) Vista and Windows7:
     "C:\User\Logon Name\AppData\Roaming\SOUNDGRAPH\iMON"

     By default this folder is hidden. If you can't see this folder, select "Show Hidden files and folders'" in Explorer's Tools > Folder options > 'View' Tab > Advance Settings.

2. The Location of Remote Settings (Key Mappings)
     Under iMON Data Folder, the location is "....\iMON\Setup\Remote Name".
     If you're using iMON PAD remote, it is "....\iMON\Setup\iMON PAD".

3. Backup and Restore Remote Settings
     Remote settings can be used in other system with just copy & paste.
     Copy this folder and overwrite it in the system you want to set the same settings.

4. Other iMON Settings
     iMON.ini file in iMON Data Folder is used for saving FrontView configuration and other settings are saved in Registry. (HKEY_CURRENT_USER\Software\SOUNDGRAPH\iMON)
     But we will add the feature backing up and restoring iMON settings later.


The iMON Device Disconnection problem with Game Controller

[Symptoms]

When some games or Windows Control Panel’s Game Controllers is running, the problem that iMON device is disconnected and then connected repeatedly occurs with some models and some versions of iMON hardware.

[Cause]

This problem occurs because Windows DirectInput Device Enumeration API function requests the ‘device description string’ of iMON hardware even it talks to Windows that it does not support the description string.

[Solution]

In order to avoid this problem, iMON device should be disabled before the Windows DirectInput Device Enumeration API function is called. Because some games and Windows Control Panel’s Game Controllers call this API function periodically, it would be better disable iMON device before these programs are running and enable it again after exiting these programs.

[Tool and patch file]

One tool and new iMON.exe file are supported in order for users faced on this problem to make iMON device disable/enable easily. Please refer the following;

<< For iMON Manager Version 7.60.0521 or later >>

1.        Make iMON Software up to date to version 7.60.0522 or later.

2.        Download the tool file at the following URL
Tool for 32-bit (x86) OS:
http://download.soundgraph.com/file/EnableDisableiMON(x86).zip
Tool for 64-bit (x64) OS:
http://download.soundgraph.com/file/EnableDisableiMON(x64).zip

3.        Unzip the downloaded file in the temp folder.
There’s one file extracted; EnableDisableiMON.exe

4.        Move EnableDisableiMON.exe to the folder where you could easily access such as Windows Desktop.
(Because the step 1 to 4 is for applying patch and being ready to use the tool, there’s no need to do these steps again if once applied. The following step 5 to 7 should be done whenever you’d like to enjoy game program.)

5.        Before running a game program, run EnableDisableiMON.exe first.
Then iMON device will be disabled and iMON indicator will show yellow color.

6.      Enjoy the game.

7.        After exiting the game, run EnableDisableiMON.exe again
Then iMON device will be enabled and iMON indicator will show blue color.



<< For iMON Manager Version 7.40.0806 or before >>

1.       Make iMON Software up to date to version 7.40.0806
http://download.soundgraph.com/file/setup/iMON_7_40_0806.zip

2.       Download the patch file at the following URL
http://download.soundgraph.com/file/iMon_7_40_0806_Patch_GameController.zip

3.       Unzip the downloaded GameControllerProblem.zip file in the temp folder.
There’s one file extracted; iMON.exe

4.       Exit iMON Manager and overwrite iMON.exe to the iMON installation folder. Run this new iMON.exe.

5.       Download the tool file at the following URL
Tool for 32-bit (x86) OS:
http://download.soundgraph.com/file/EnableDisableiMON(x86).zip
Tool for 64-bit (x64) OS:
http://download.soundgraph.com/file/EnableDisableiMON(x64).zip

6.       Unzip the downloaded file in the temp folder.
There’s one file extracted; EnableDisableiMON.exe

7.       Move EnableDisableiMON.exe to the folder where you could easily access such as Windows Desktop.
(Because the step 1 to 7 is for applying patch and being ready to use the tool, there’s no need to do these steps again if once applied. The following step 8 to 10 should be done whenever you’d like to enjoy game program.)

8.       Before running a game program, run EnableDisableiMON.exe first.
Then iMON device will be disabled and iMON indicator will show yellow color.

9.      Enjoy the game.

10.    After exiting the game, run EnableDisableiMON.exe again
Then iMON device will be enabled and iMON indicator will show blue color.



Remark

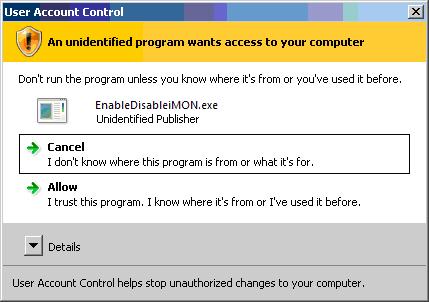

A.       On Windows Vista, UAC (User Account Control) window will show whenever EnableDisableiMON.exe is run because the administrator level is needed to enable/disable device on Windows Vista. Windows UAC can be disabled in Windows Control Panel.

B.       Even during iMON device disabled with EnableDisableiMON.exe, the mouse cursor movement with the thumb PAD on iMON PAD remote and input the numeric character with the numeric buttons on iMON PAD remote can work, because only iMON HID device is disabled.
